Components

R = D_a
r = 0,1 x D_a
h1 ≥ 3,5 x s
h2 = 0,1935 x D_a – 0,455 x s
h₃ = h₁ + h₂

up tp Ø 7.000 mm and thickness 38 mm

R = 0,8 x D_a
r = 0,154 x D_a
h₁ = 3 x s
h₂ ≥ 0,255 x D_a - 0,63 x s
h₃ = h₁+ h₂

up tp Ø 6.200 mm and thickness 40 mm

R = D_a (Standard-type head)
R = 1,3 x D_a (flat dished head)
r = depending on diameter
(15–50 mm, upon request > 50 mm)
h₁≥ 3,5 x s
h₂ = camber height
h₃ = h₁ + h₂

up to Ø 7.000 mm and thickness 38 mm

Form R = D_a
h₂ = 0,134 x D_a

Form R = 0,8 x D_a
h₂ = 0,176 x D_a

Form R ≥ Da possible upon request

up to Ø 7.800 mm and thickness 38 mm
(up to Ø 1.500 mm also increased thickness possible)

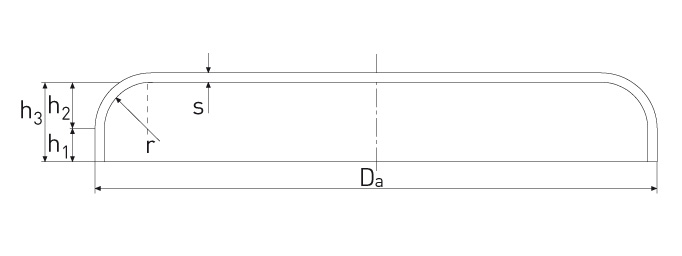

h₁ ≥ 3,5 x s
r = 15–50 mm – upon request > 50 mm
h₃ = h₁ + h₂

up to Ø 7.000 mm and thickness 38 mm

h₁ ≥ 3,5 x s
r = 15–50 mm – upon request > 50 mm
h₃ = h₁ + h₂

up to Ø 7.000 mm and thickness 38 mm

R ≥ D_a
r = max. 100 mm
h₁ >= 3,5 x s

up tp Ø 7.000 mmand thickness 38 mm

Form 2:1
D_i = D_a - 2 x s
R = 0,9 x D_i
r = 0,17 x D_i
h₁ = acc. to specification
h₂ = 0,25 x D_i
h₃ = h₁ + h₂

Form 1,9:1 also possible upon request
up to Ø 6.200 mmand thickness 38 mm

OD = 21,3 - 609,6 mm (1/2" - 24")

We offer a wide range of dimensions and wall thicknesses in different qualities. Of course, we also manufacture fittings in special thicknesses and qualities at the customer's request.

h₃ = h₁ + h₂
up to Ø 650 mm (possibly bigger)
partly warm pressed without welding seam

Furthermore we provide cones up to
Ø 7.000 mm with knuckel radius up to 900 mm

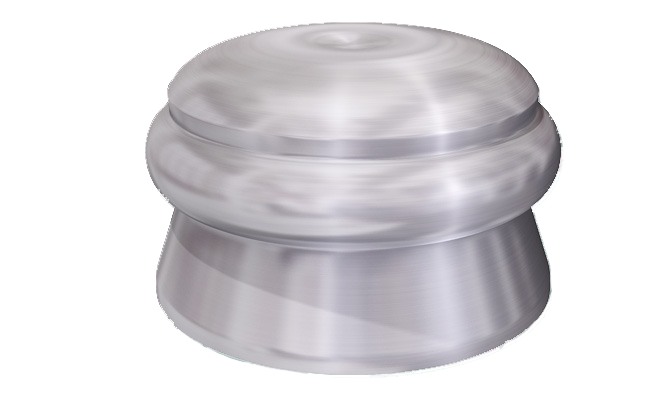

Special pressings components can be carried out either cold or warm pressed according to your individual requirements.

Please send us your specific inquiry.
